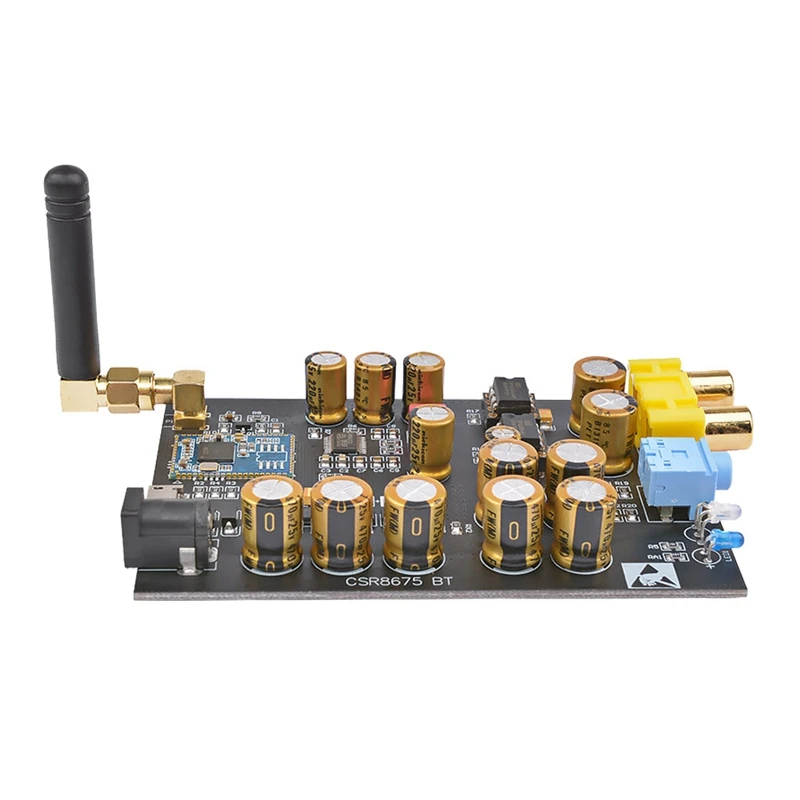

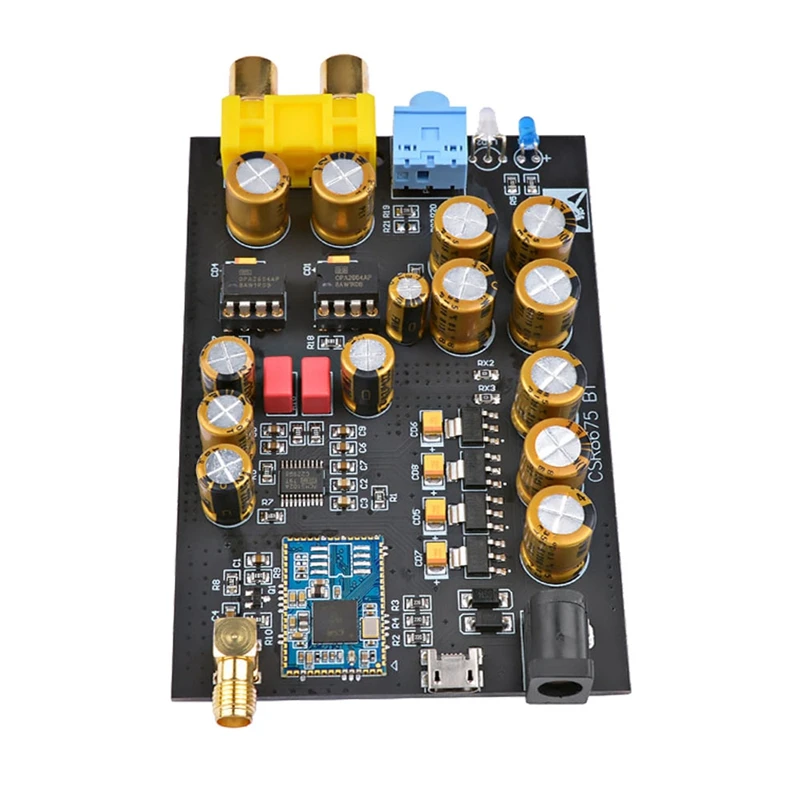

Chip: CSR8675 + PCM5102A
Support: ATPX HD 24BIT
SNR: 112db, direct output 2.1 V RMS audio voltage
Transmission distance: 10 m
OP: NE5532
Compatible with 5532 OPA2132 OPA2134 AD827 AD712, you can change it yourself
DC input (5.5X2.1): 12 V DC adapter (300MA or more).
Input USB: 5V micro-usb charger (500MA or higher).

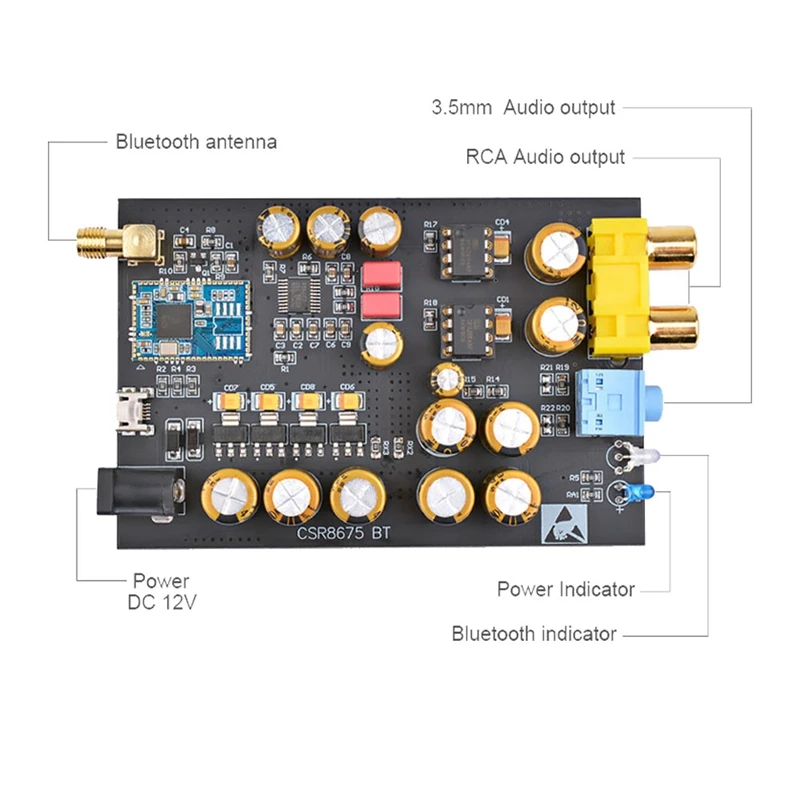

RCA output Can be connected to the amplifier
3.5mm headphone output, built-in headphone amplifier can drive 300 ohm headphones
colour: black
Material: metal + PC
Package Contents:
1 x Board with antenna
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
