CNC MACH3 USB 5 осей 100 КГц USBCNC Плавная Шаговый контроллер карты выходного сигнала для гравировки 12-24В включено.

CNC MACH3 USB 5 осей 100 КГц USBCNC Плавная Шаговый контроллер карты выходного сигнала для гравировки 12-24В включено.

Recommend to use our shop's electronic hand wheel for easier connection

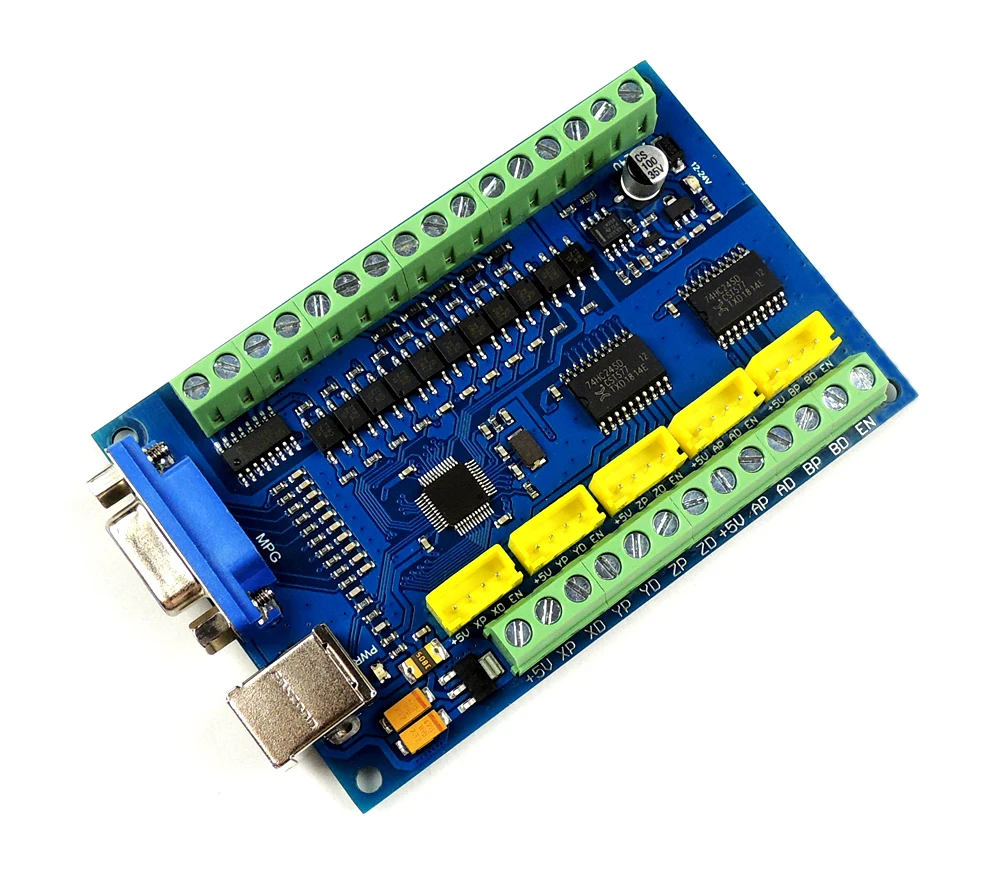

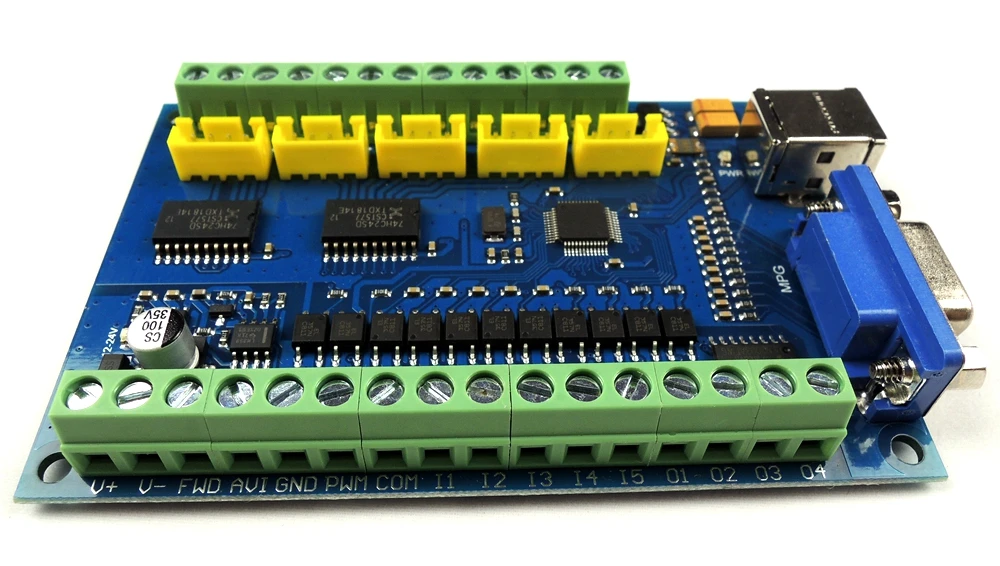

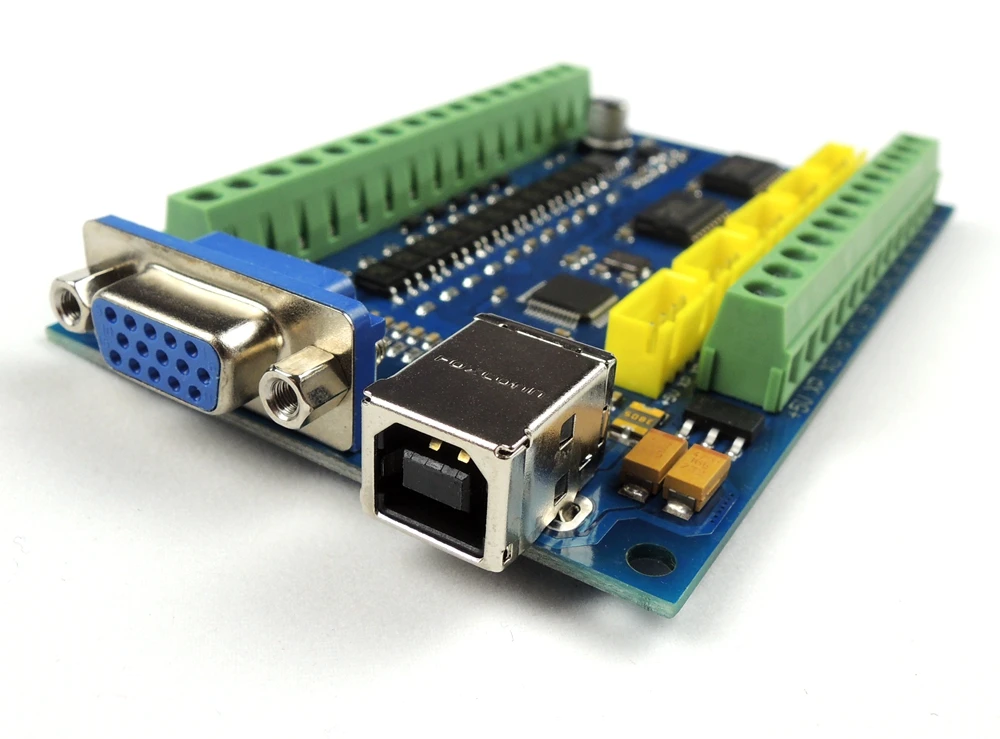

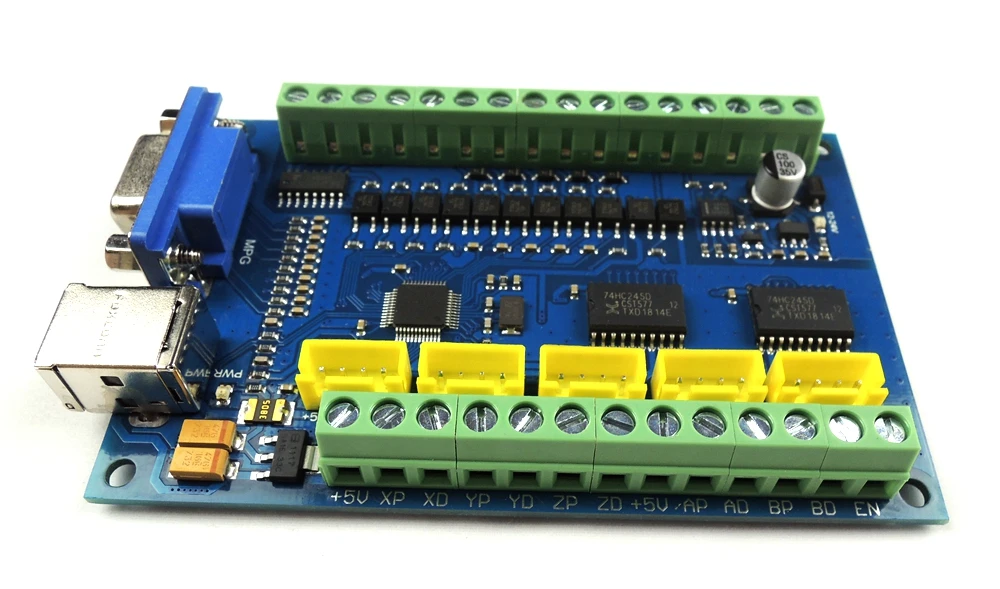

STB5100 5-axis mach3 USB controller card, suitable for all versions of mach3 software, support for all versions of Windows operating system, easy to use, very suitable for the users that using mach3 software to make engraving machine.

Features:

1. Support for Windows XP, Windows 7 32/64bit, Windows8, Windows10 operating system;

2. Applicable to all versions of mach3 software;

3. Support for CNC controlled 5-Axis, can connect five stepper motor driver or servo driver;

4. The maximum output pulse frequency is 100KHz, and the pulse width can automatically change with the pulse frequency, which can be applicable to the closed-loop driver of strict requirements on pulse;

5. Five optocoupler isolation input signal interfaces: limit switch, emergency stop switch, auto tool zero sensor, home switch, NPN sensor switch can be connected;

6. Inverter control signal interface (optocoupler isolation): Output 0-10V speed control signal, PWM speed control signal, spindle start control signal, used for mach3 software to control spindle\\\'s speed, start and stop;

7. Four universal output signal interfaces, the maximum output 500MA current, can drive relays, solenoid valves, used to control mist, pumps, cylinders and other equipments;

8. Support for external connect electronic hand wheel, use HDR15 interface to connect electronic hand wheel, used for manual control of machine tools;

9. Add the enable signal interface, can be used to control the driver enable signal;

10. The power of control card: voltage 12-24VDC, current more than 500MA.

Dimensions:

\'

'
